Pipeline constructor • Simple pipeline generator

Pipeline constructor is an asset for Blender 3.2+, implemented with the Geometry Nodes, that converts a regular mesh to a pipeline model, it is formed from predefined elements.

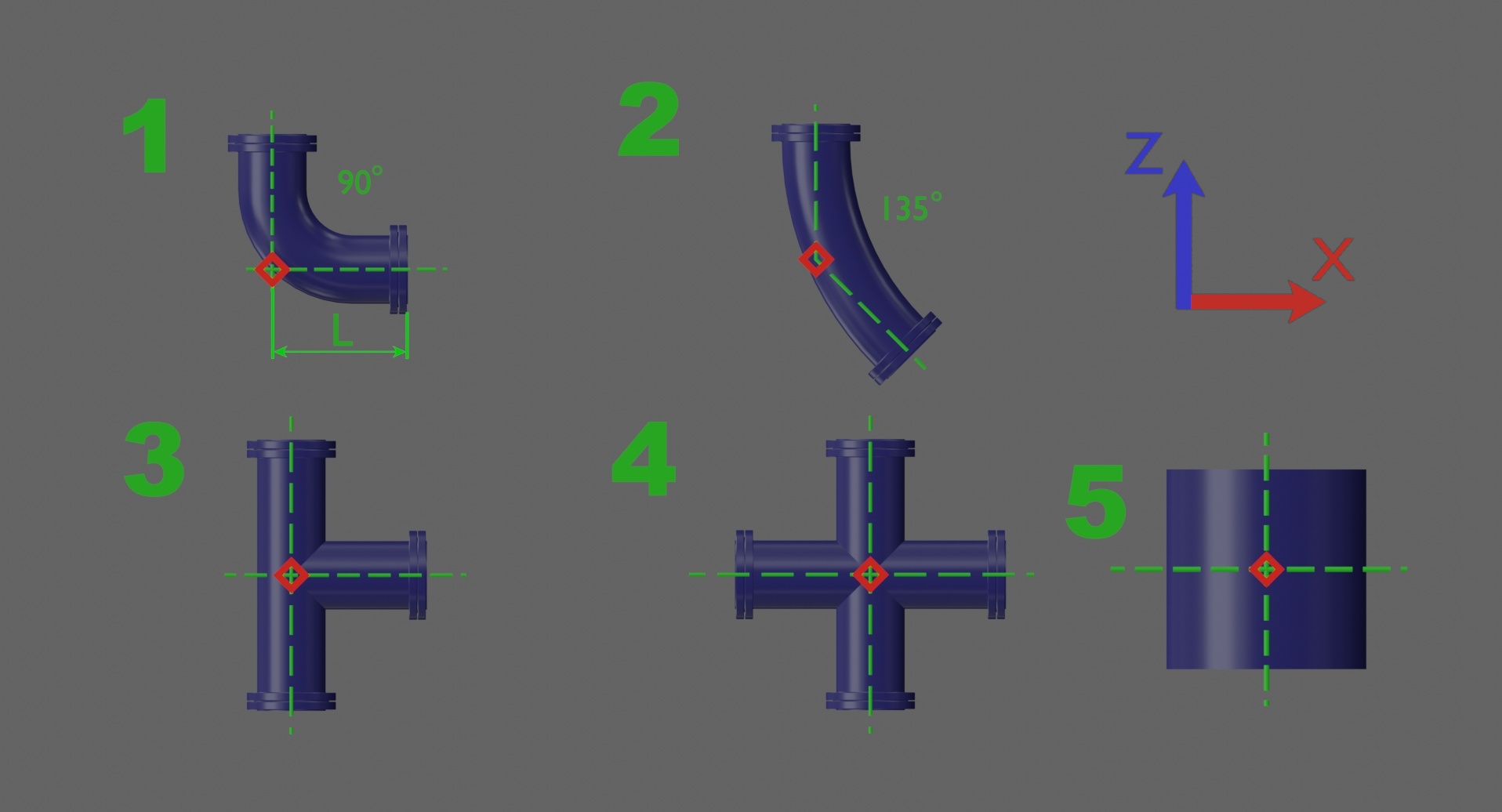

Basic structural elements: elements of the angular connection of pipes with angles of 90 and 135 degrees (1 and 2), the "tee" connector (3) and the "crosspiece" connector (4) are shown in figure below. These elements can be replaced by the user with any other ones in compliance with certain requirements. It is also possible to model not only pipelines, but other objects with a similar structure, for example, roads, cable lines, building structures, etc.

There are two types of pipelines in the kit: steel pipes with a flange joining and polypropylene pipes with a welded joining .
